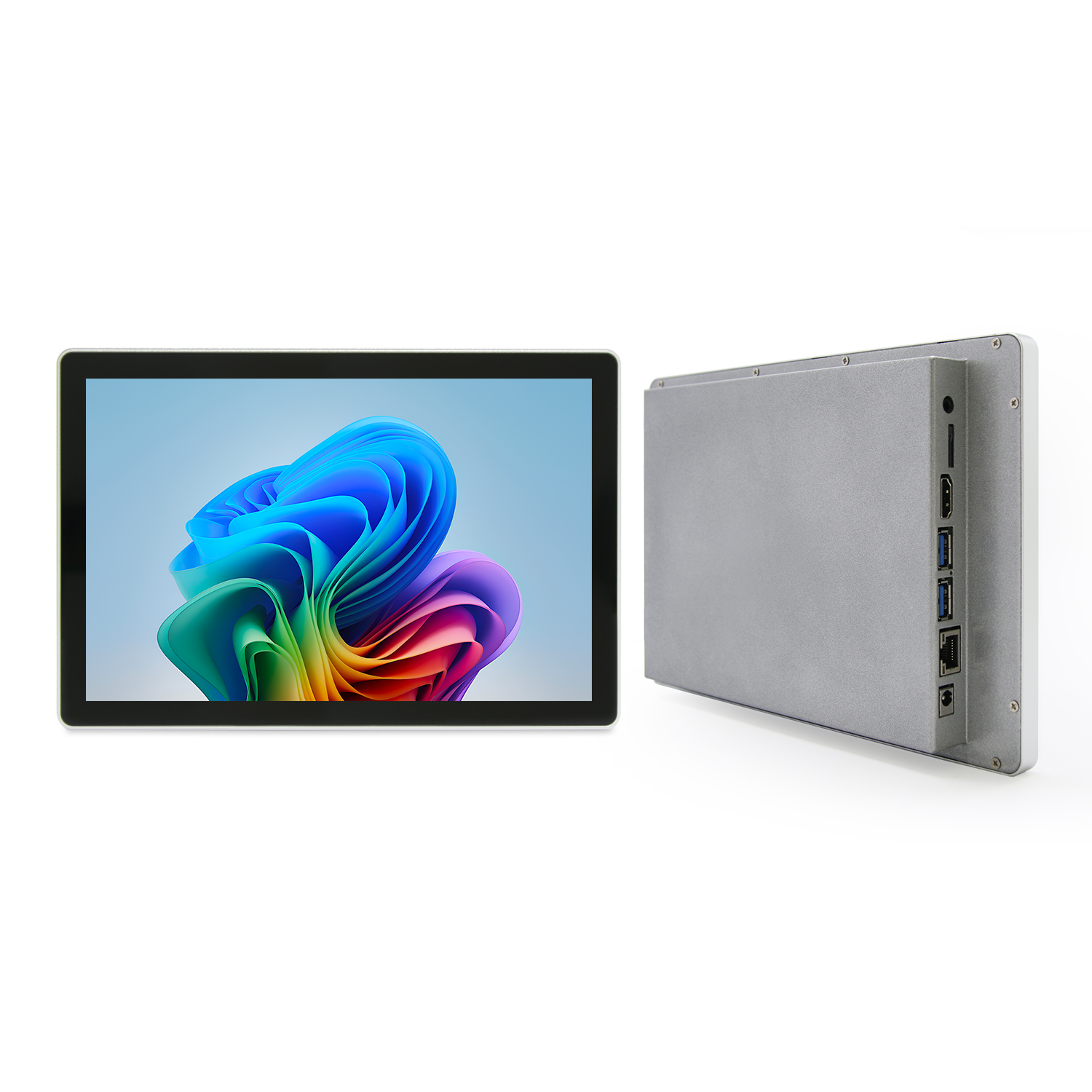

IE1001/IE1561/IE2151 10.1”/15.6”/21.5” Reliable Embedded Industrial ARM Touch Panel PC Built for Harsh Industrial Environments
Core Highlights:
- Ultra-Slim 2mm Design: Maximizes space in compact installations.
- IP65 Front Panel: Protects against dust and water for durability.
- Open OS & SDK Support: Accelerates OEM/ODM customization and deployment.
- Advanced Wireless Connectivity: WiFi 6, Bluetooth 5.3, and optional 4G.
Technical Specifications
| Category | Parameters |
|---|---|
| Display | 10.1"/15.6"/21.5" LCD IPS Panel, 1280*800/1920*1080,16:10/16:9 |
| Touch Screen | 10-Point PCAP |
| Processor | Intel® N100, 4*Cores, Type 0.8GHz up to 3.4GHz |
| RAM & Storage | 4+128GB / 8+256GB |
| OS | Windows 10 / Linux |
| Network | RJ45 (1000M) |
| Android l/O Ports | USB Host 2.0*2, USB Host 3.0*2, HDMI Output*1, DP Output*1, RJ 45 Port*1, 3.5 mm Headphone jack |
| Audio/Media | 2*8Ω 3W Speakers, Supports up to 1080p Video |
| Optional | MIC, Wi-Fi (802.11b/g/n/ac/ax), Bluetooth 4.0, other size (13.3''/15''/18.5''/19''/24''/27''/32''/43'') |
| Mounting | Embedded |
Engineered for Commercial Excellence

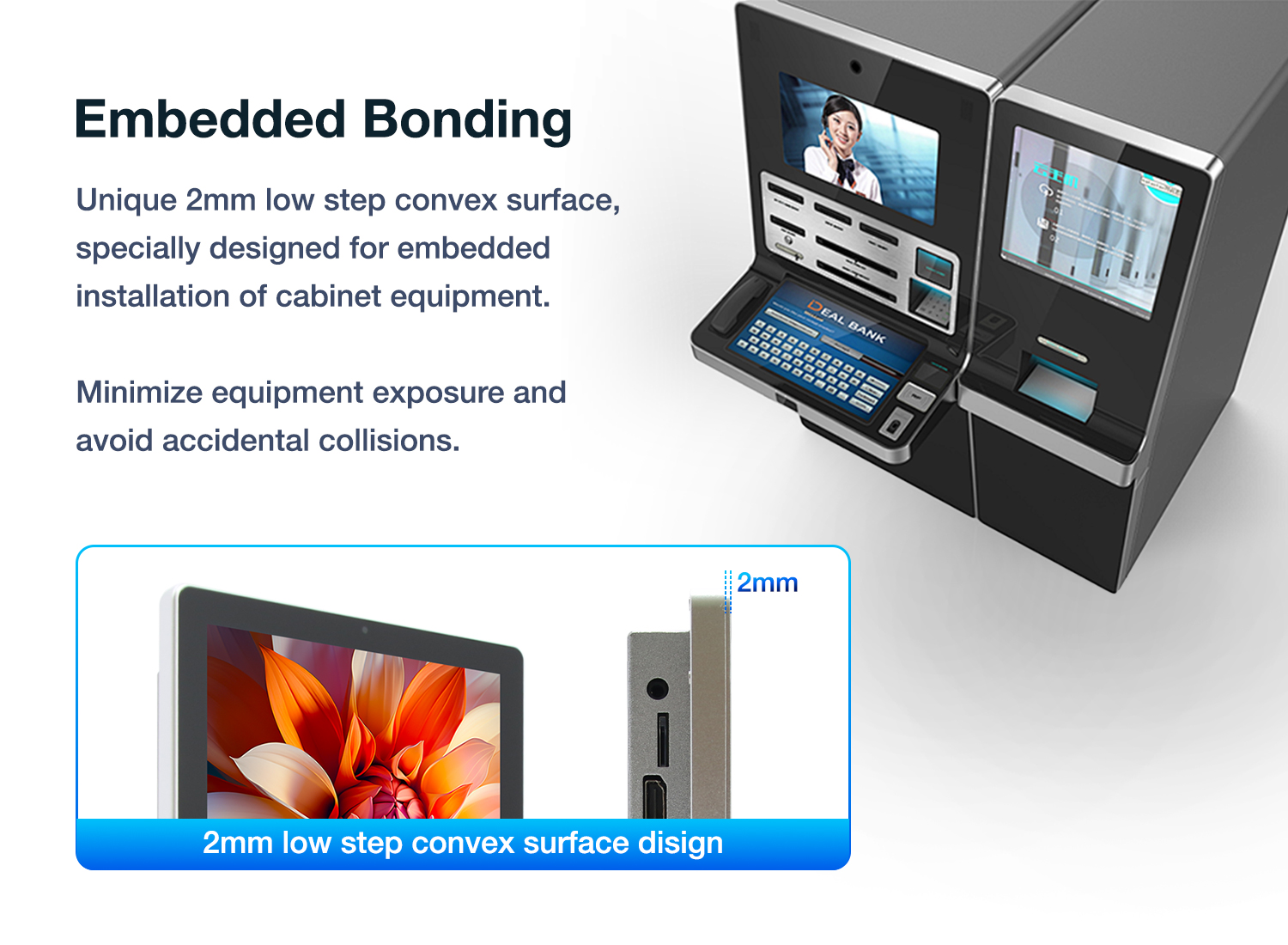

Embedded Mounting Design
2mm ultra-low-profile flush design enables seamless cabinet integration, reducing exposure and accidental impact. Full metal housing ensures durability, shock resistance, and efficient passive cooling.
Harsh Environment Ready
Supports DC 9V–36V wide voltage input and operates from -10°C to 55°C. IP65 front panel with EMC/ESD protection ensures stable performance in industrial environments.
Industrial Touch Display
Full HD display with 300 nits brightness and wide viewing angles. Features 10-point capacitive touch for smooth operation, with optional resistive touch for glove use.
Smart Factory Connectivity
Supports Gigabit Ethernet, PCIe expansion, WiFi 6, Bluetooth 5.3, and optional 4G modules for reliable Industrial IoT communication.
Open ARM Platform
Powered by ARM architecture with Android or Linux (Debian/Ubuntu). Includes full SDK support for fast customization and system integration.
Request a Quote
Get bulk pricing and custom specifications for your project.
