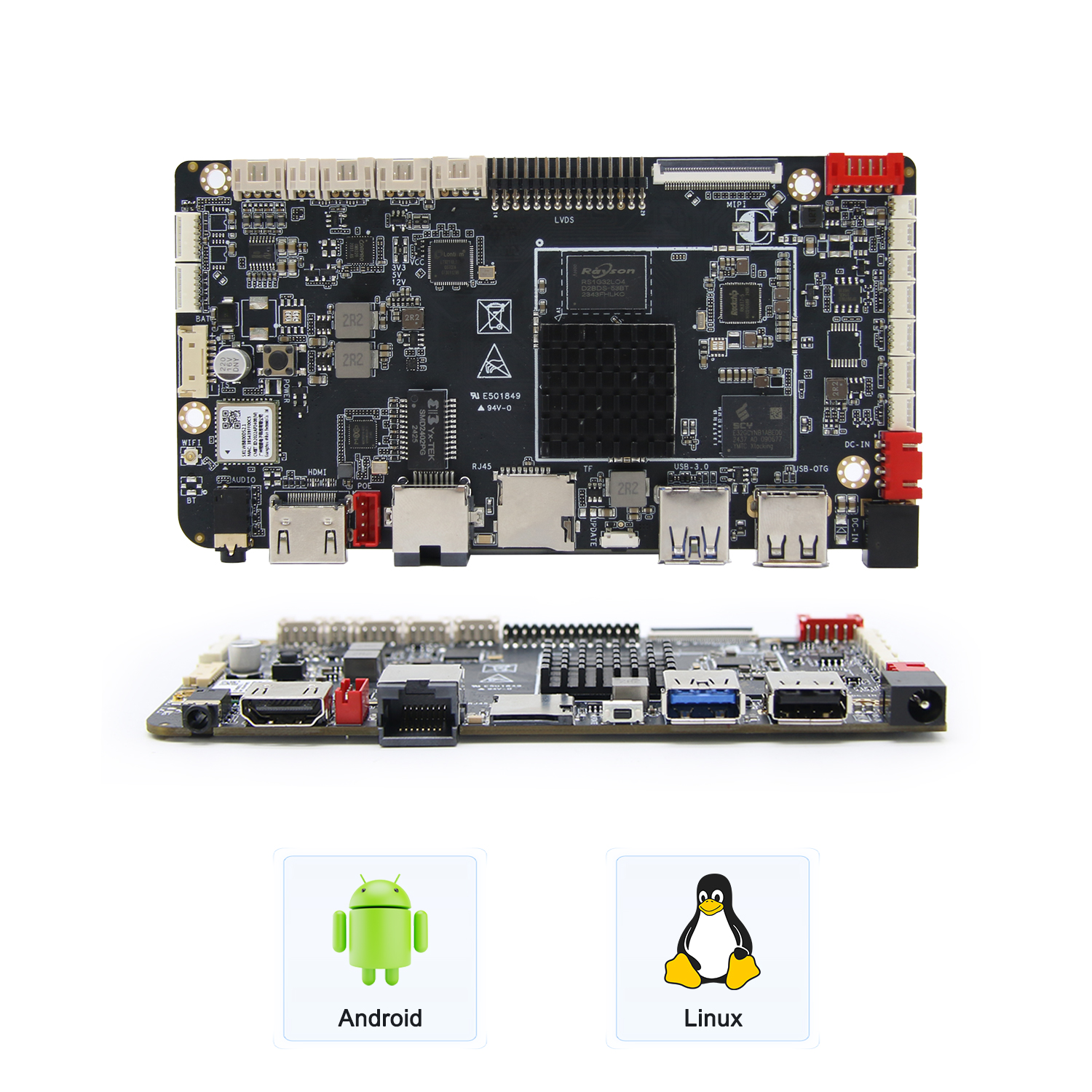

LVK3566LZ/LVK3568LZ RK3566/RK3568 Android Mainboard for Digital Signage & Kiosk with PoE
Core Highlights:
- Integrated Edge AI: Run real-time AI inference at the edge.
- Flexible Display Expansion: Drive single or dual display applications.
- PoE & Rich Connectivity: Simplify installation and peripheral integration.
- Open Development Platform: Build faster with Android, Linux, and SDKs.
Technical Specifications
| Category | Parameters |
|---|---|
| Chipset | Rockchip |
| CPU | RK3566/RK3568, Quad-core Cortex-A55 |
| GPU | ARM Mali-G52 2EE GPU Supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.1 |
| NPU | 1TOPS |
| RAM | DDR3/4/5, 2G/4G/8G |
| Storage | 16GB/32GB/64GB/128GB |
| OS | Android 11.0 / Android 13.0 / Linux (Debian) |
| Output Signal | LVDS, eDP, MIPI, HDMI Output |
| Network | RJ45 (1000M, Supports PoE), Wi-Fi (802.11b/g/n/ac/ax), Bluetooth 5.4 |
| USB Ports | USB3.0* 1, USB OTG*1,USB2.0 built-in *4 way |
| Media | 4K@60fps H.265/H.264/VP9 video decoding; 1080p@60fps H.265/H.264 video encoding; integrated 8MP ISP with HDR support |
Engineered for Commercial Excellence

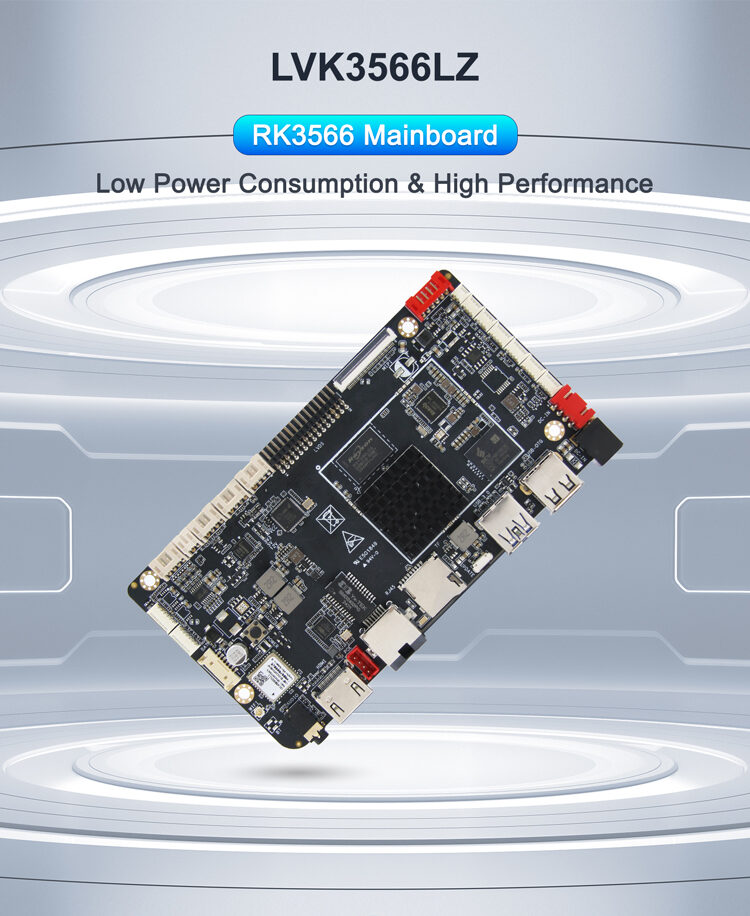

Ultra Compact Design
With its compact design, the LVK3566LZ integrates easily into kiosks, access control, smart home, and commercial display systems. Clearly labeled connectors streamline assembly, reduce integration complexity, and speed up product development.

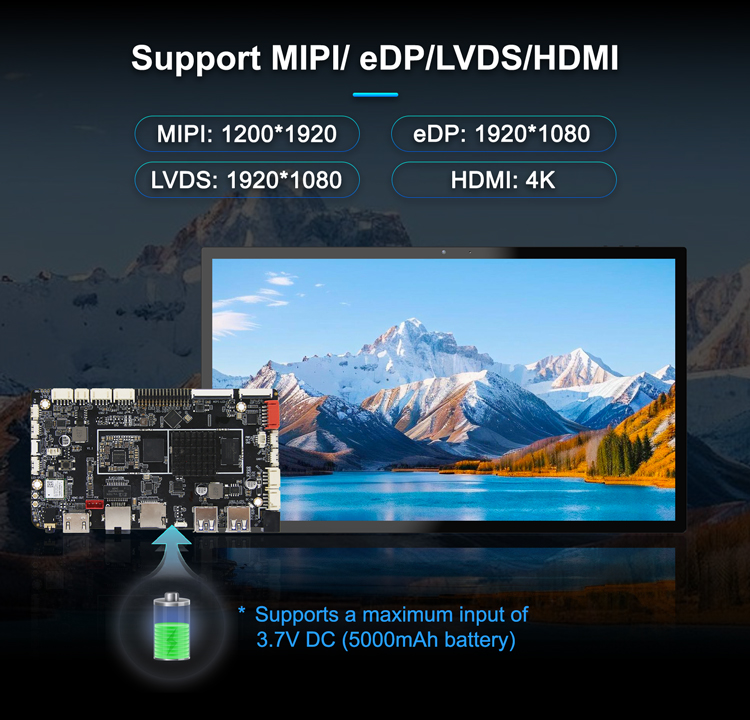

Multi Display Output
Supports MIPI-DSI, eDP, LVDS, and HDMI 2.0 (4K) for flexible single or dual-display configurations. Suitable for signage, HMI panels, and embedded terminals requiring stable multi-display output and reliable visual performance.

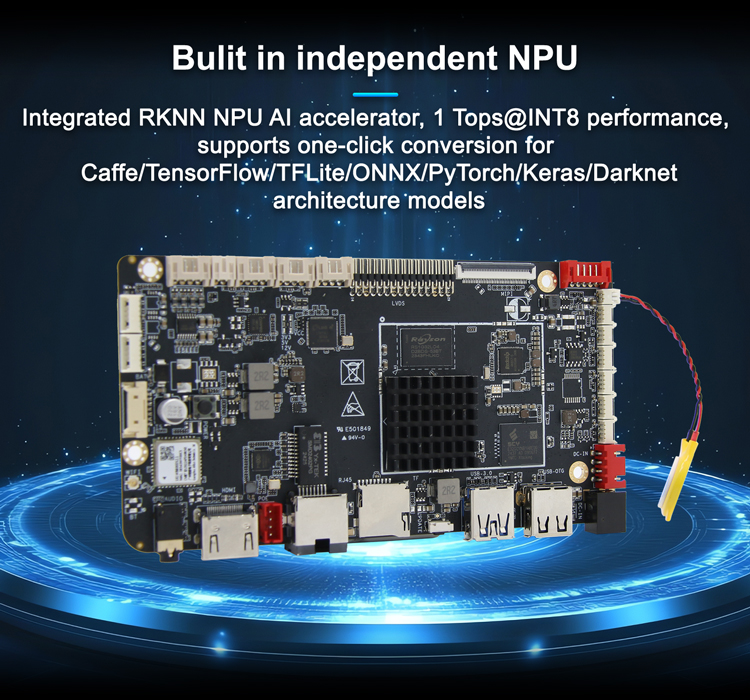

Edge AI Processing
Powered by Rockchip RK3566/RK3568 with 1 TOPS NPU, supporting facial recognition and object detection at the edge. Reduces cloud dependency and latency while maintaining real-time processing efficiency for industrial applications.

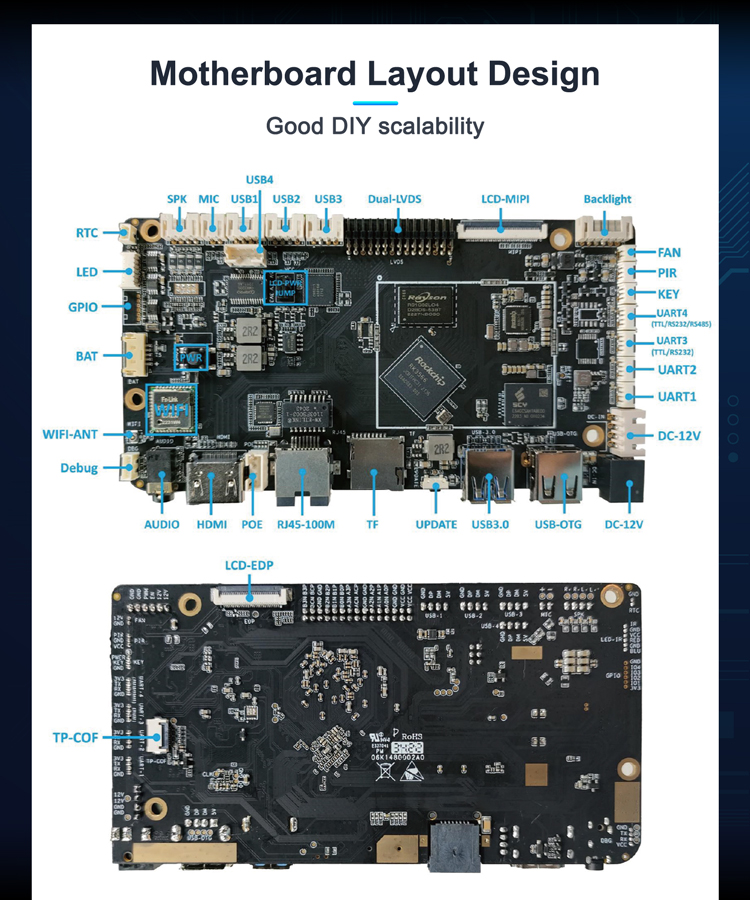

Industrial I/O Interface
Rich I/O interfaces support flexible peripheral connectivity and seamless integration with cameras, displays, sensors, and external devices. Android and Linux support, together with a complete SDK, help shorten development cycles and accelerate product deployment.
CKD SKD Support
Our CKD/SKD services provide comprehensive OEM/ODM customization, including PCB layout, component selection, branding, and packaging. Backed by end-to-end engineering support from design to mass production, we help reduce development costs, accelerate time to market, and simplify product deployment.
