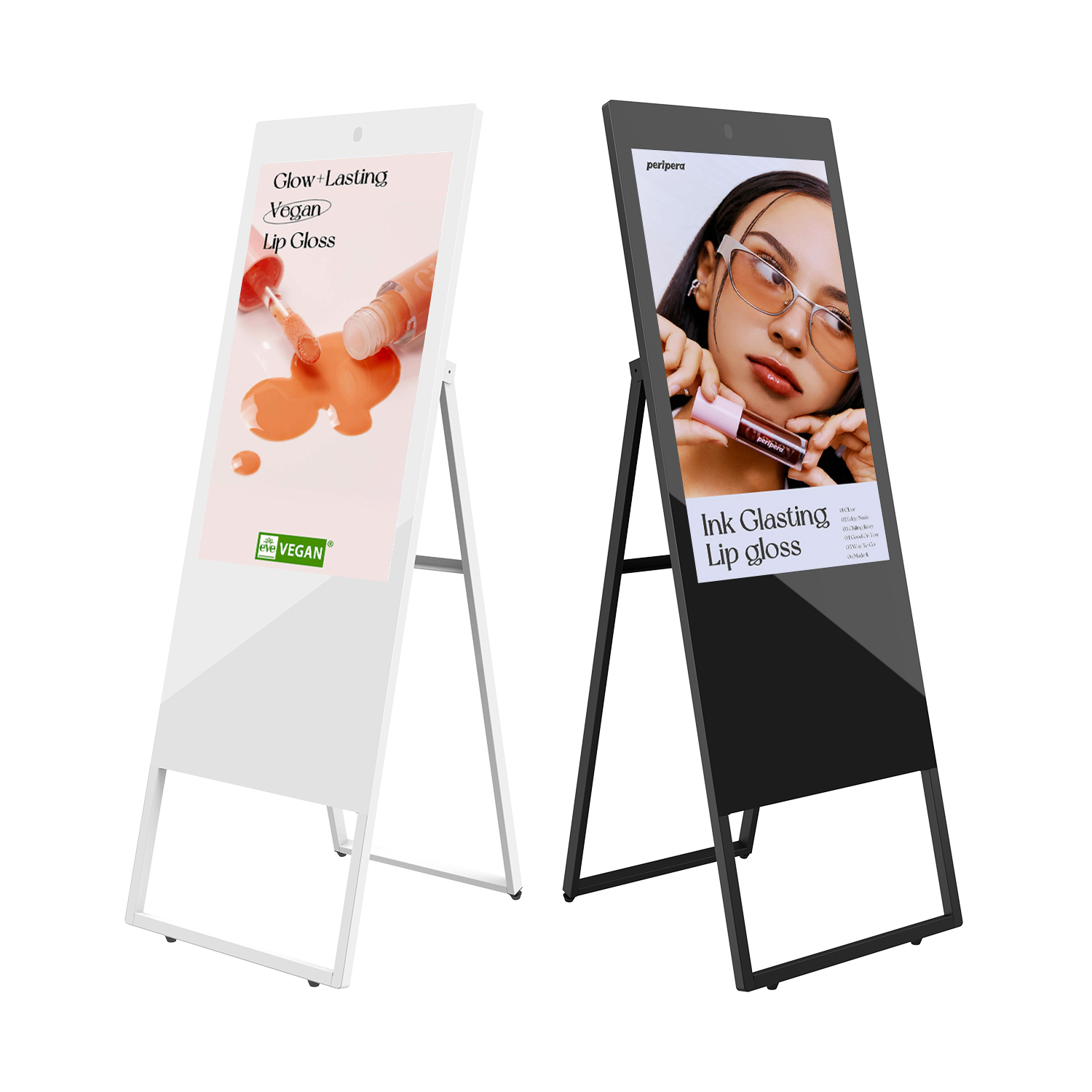

PD3202/PD4302/PD5002 RK3566 32”/43”/50” Android Digital Signage Display with Cloud CMS
Core Highlights:
- Cloud CMS Management: Update and control displays remotely from anywhere.
- 4K Smooth Playback: RK3566 delivers stable and high-quality multimedia performance.
- 24/7 Commercial Operation: Designed for continuous and reliable advertising use.
- Flexible Connectivity: Supports WiFi, Ethernet and optional 4G networking.
Technical Specifications
| Category | Parameters |
|---|---|
| Display | 32"/43''/50'' LCD IPS Panel, 1080*1920, 16:9 |
| Touch | Non touch / 10-Point PCBA / IR Touch |
| Processor | Rockchip 3566 |
| RAM & Storage | 2+32GB |
| OS | Android 11.0 / Linux (Debian) |
| Network | RJ45 (1000M, Supports PoE), Wi-Fi (802.11b/g/n/ac/ax), Bluetooth 4.0 |
| I/O Ports | USB 3.0 *1, USB OTG *1, HDMI Out *1, RJ45 Port *1, TF Card Slot, 3.5mm Audio |
| Audio/Media | 2*8Ω 5W Speakers, Supports up to 1080p Video, 4K Decoding |
| Optional | 4G Module, Cloud CMS Supported |
| Mounting | Elegant Floor Design |
Engineered for Commercial Excellence

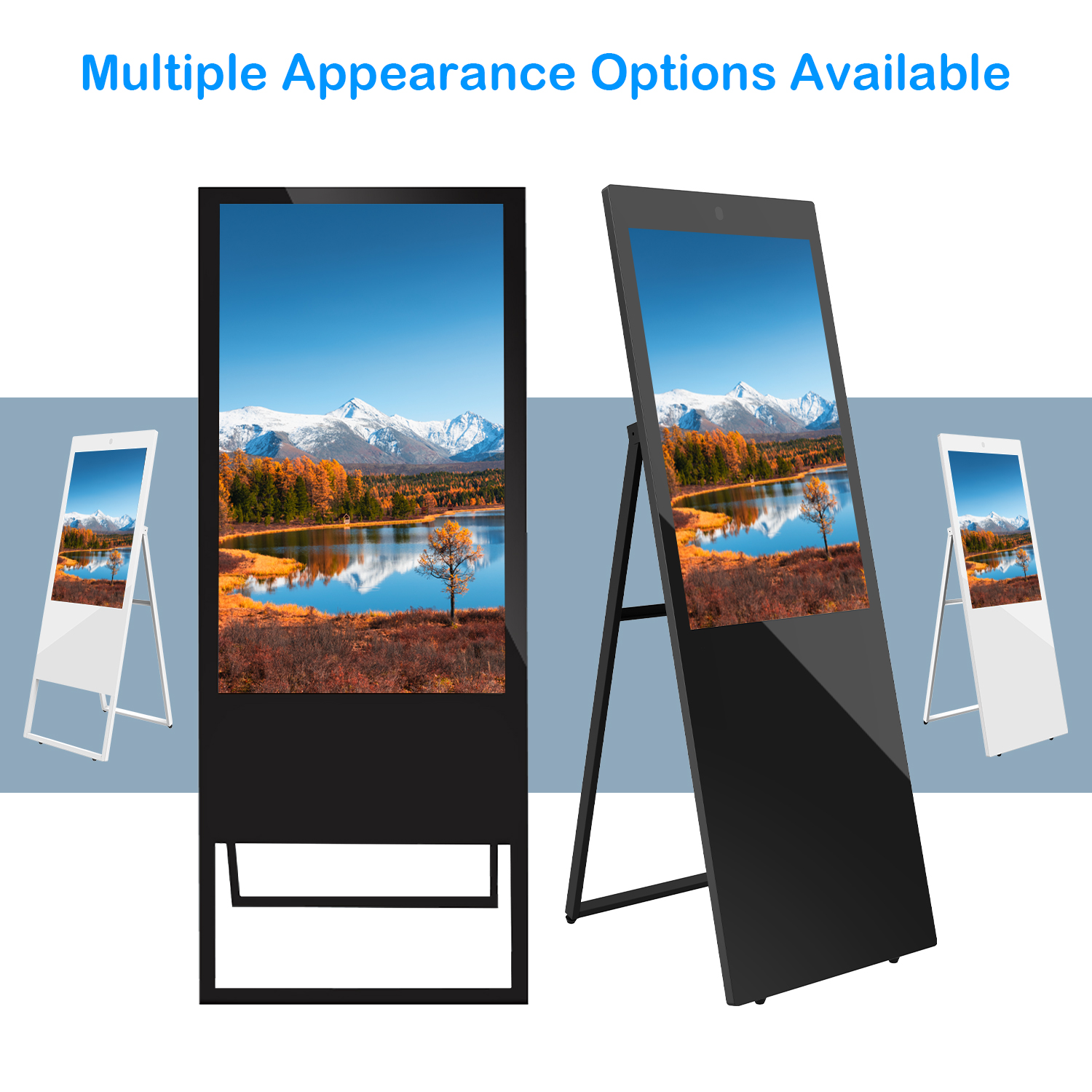

Vivid Display
Featuring a high-definition commercial display with 4K multimedia support, the floor-standing digital signage delivers vivid colors and sharp images for advertising and information sharing. Portrait orientation creates an eye-catching visual experience that attracts customer attention.

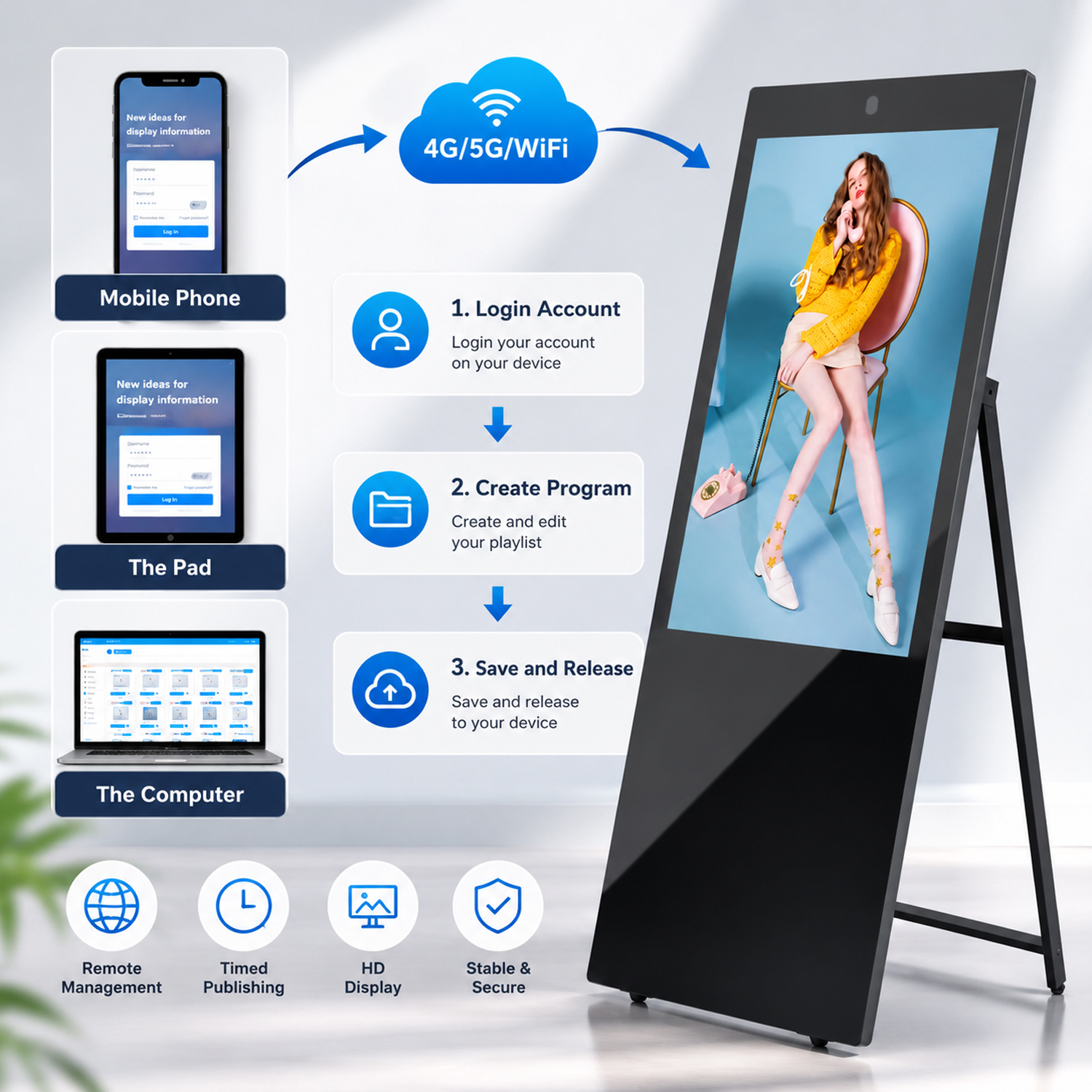

Cloud CMS Control
Integrated with cloud CMS software, the display enables remote content management from anywhere. Users can upload images and videos, schedule playlists, and manage multiple screens through a centralized platform, reducing maintenance efforts and improving efficiency.

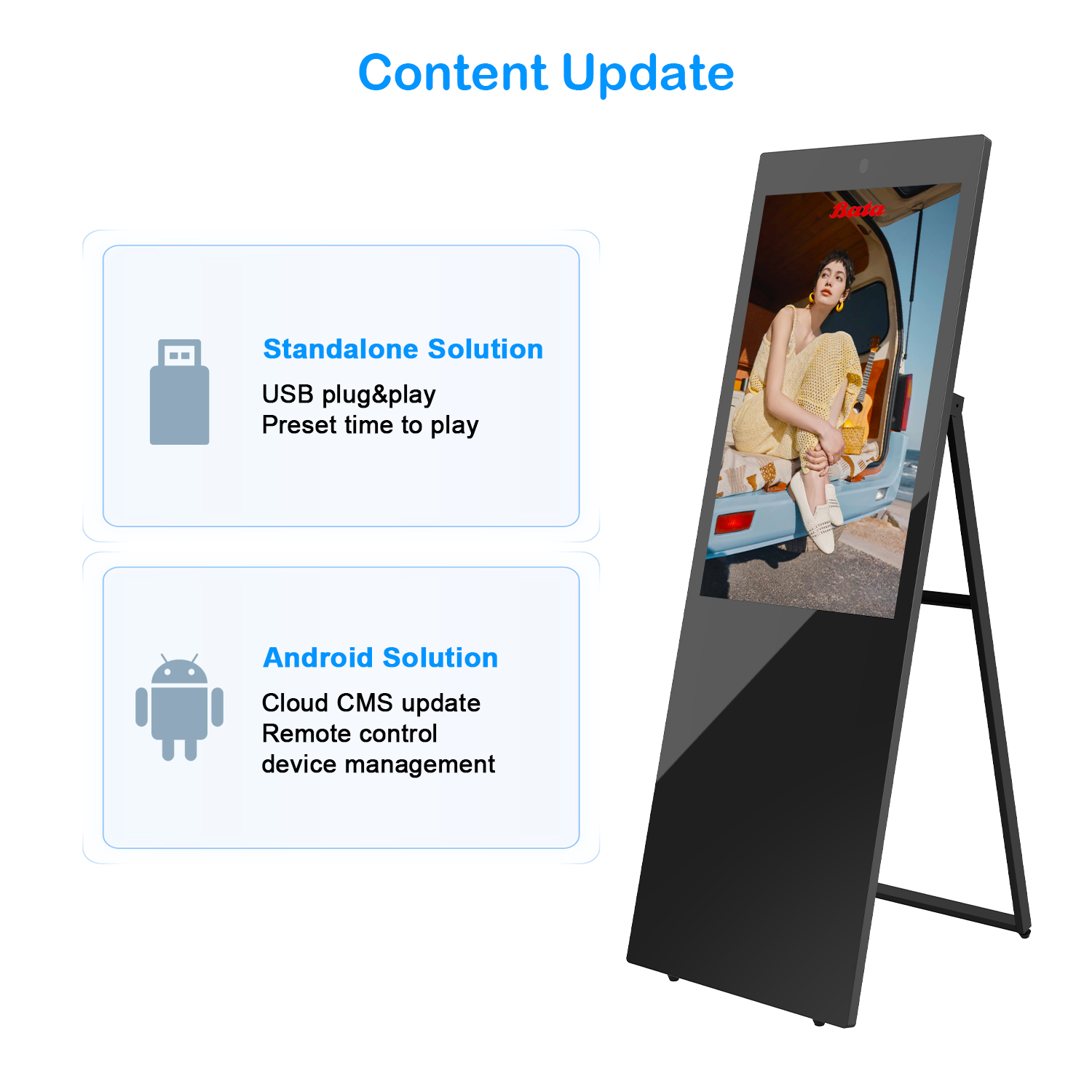

Reliable 24/7 Operation
Powered by the RK3566 processor and Android 11 system, the signage is designed for stable and continuous operation. Low power consumption, automatic startup and watchdog protection help ensure reliable performance for long-term commercial applications.

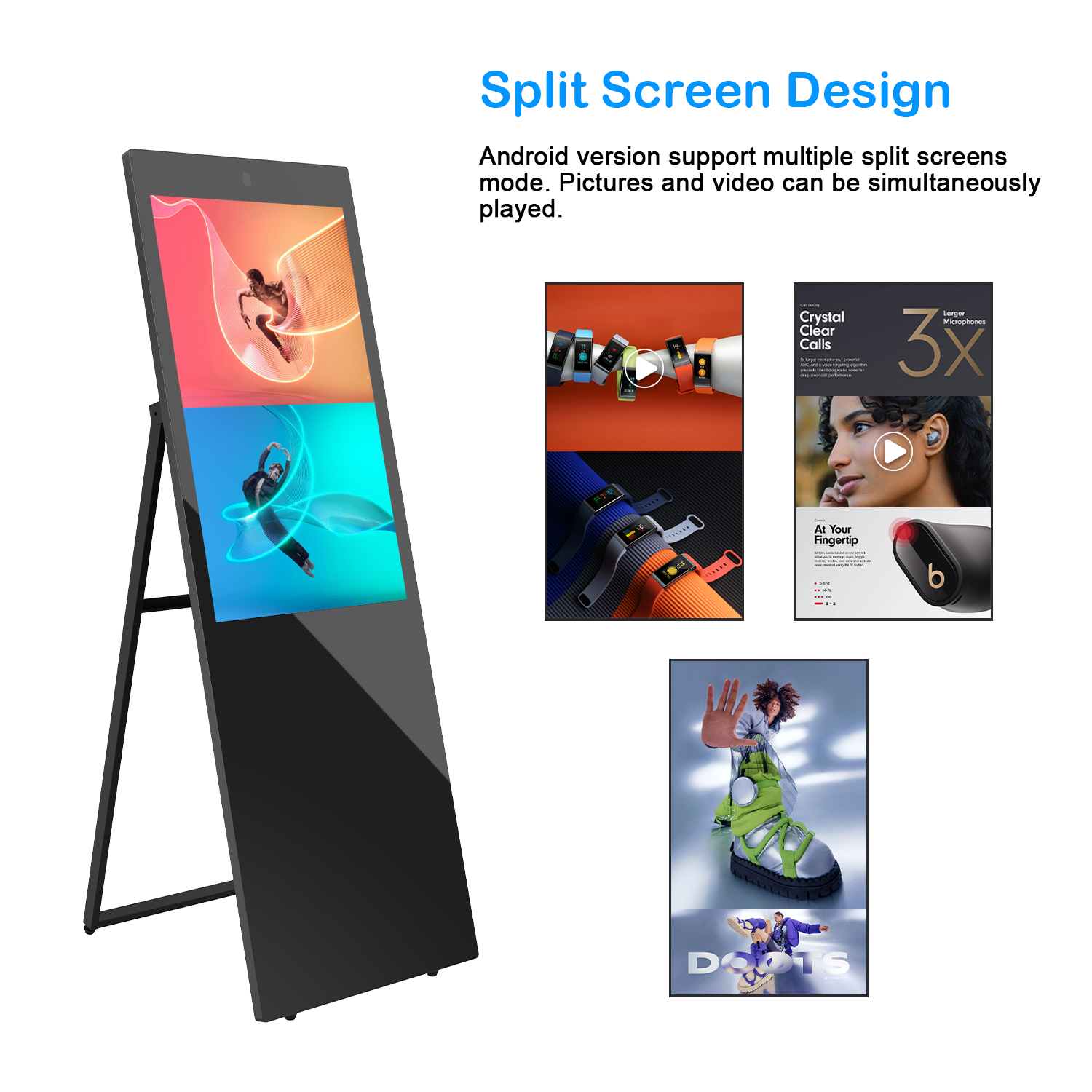

Flexible Split Screen
The display supports flexible split-screen layouts, allowing videos, images, text, and other multimedia content to be shown simultaneously. Multiple zones can be customized to maximize advertising impact and improve information delivery.

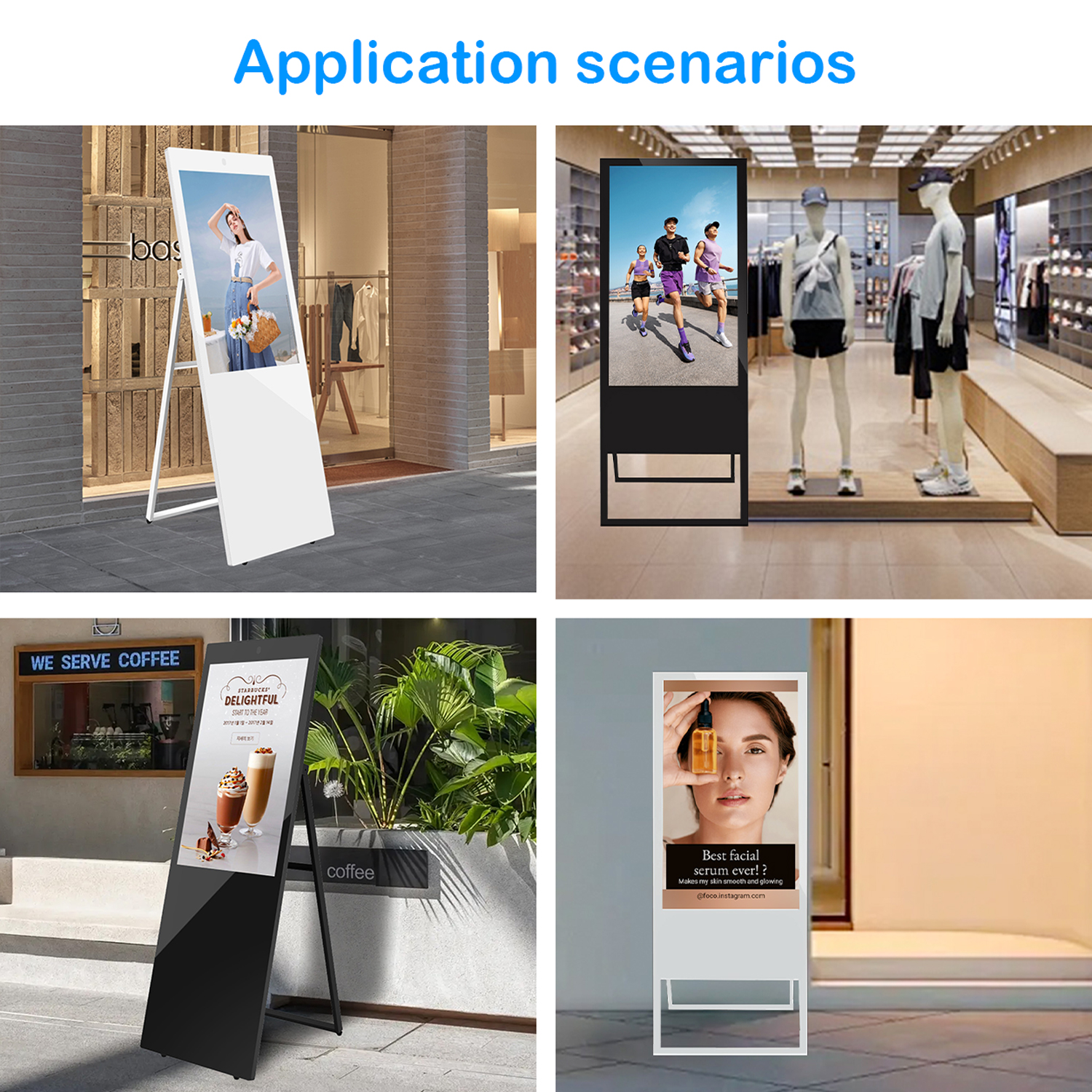

Diverse Commercial Applications
Designed for retail stores, restaurants, shopping centers, hotels and corporate environments, the digital signage is ideal for displaying advertisements, promotions, menus and information. It helps businesses improve customer engagement and enhance brand visibility.
Request a Quote
Get bulk pricing and custom specifications for your project.
